Ferrari Crane 736

The 736R is designed to be installed on GVW 24 ton truck and on bigger trucks. Thanks to the articulated boom, the Red Power and radio remote controls with Danfoss PVG32c the 736R is the perfect choice for high demanding customers. The short boom version (SC) for a higher lifting moment and higher lifting point is also available.

Features of the model

736

pictogram_lifting_moments Lifting moment: 32.4 tm
pictogram_slewing_angle Slewing angle: 400º
pictogram_working_pressure Max. working pressure: 310 bar
pictogram_max_oil_flow Oil flow: 45 l/min
icon-oiltank Oil tank: 160 l
pictogram_standard_weight Standard weight: 3590 kg
icon-stabilizer Standard stabilizers: 6200 mm
icon-truck Suggested truck: GVW 24 t

Standard

  • Radio Remote Control (Hetronic + Danfoss PVG32)
  • Cast base
  • Red Power
  • PB (Power Boost)
  • Safety valves
  • EQS (Extension Quick System)
  • Load Limiting Device
  • Self-lubricating bushings
  • Swivel load hook
  • Turning stabilizers
  • Rack and pinion slewing system

Optional

  • Short arm configuration (SC)
  • Automatic turning stabilizers
  • Manual extensions
  • RLC
  • Extra functions
  • Oil cooler
  • Additional cross beams
  • Hydraulic winch
  • JIB

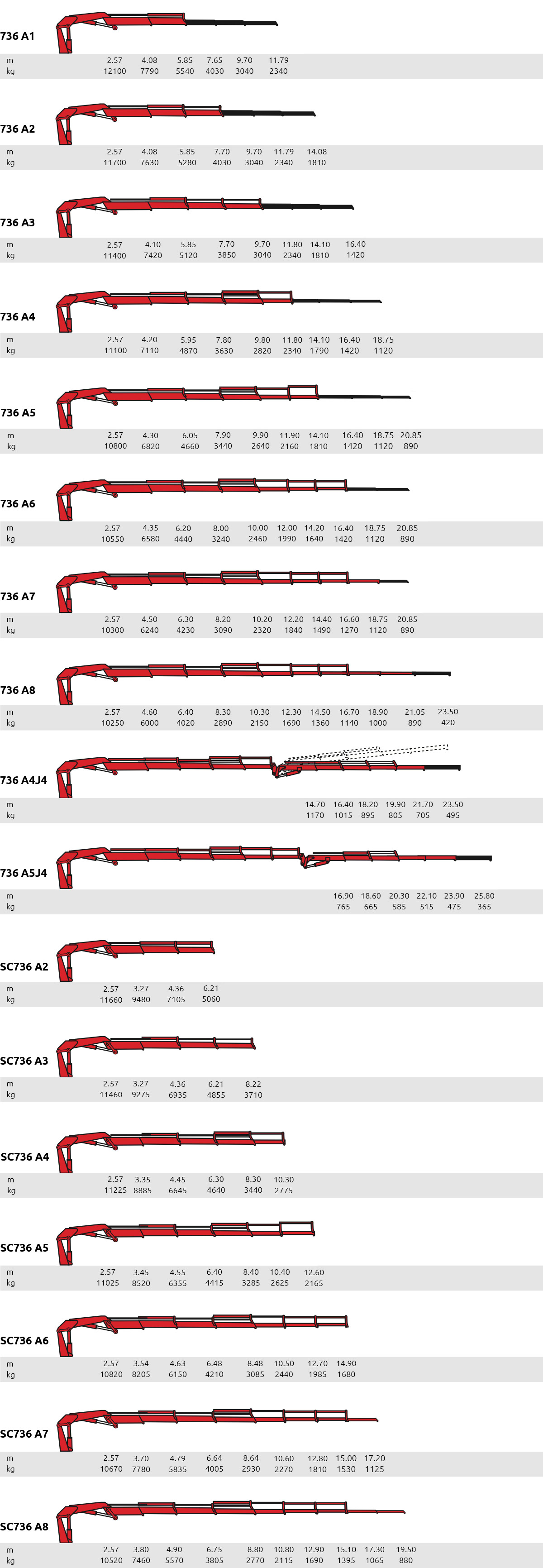

736 VERSIONS
